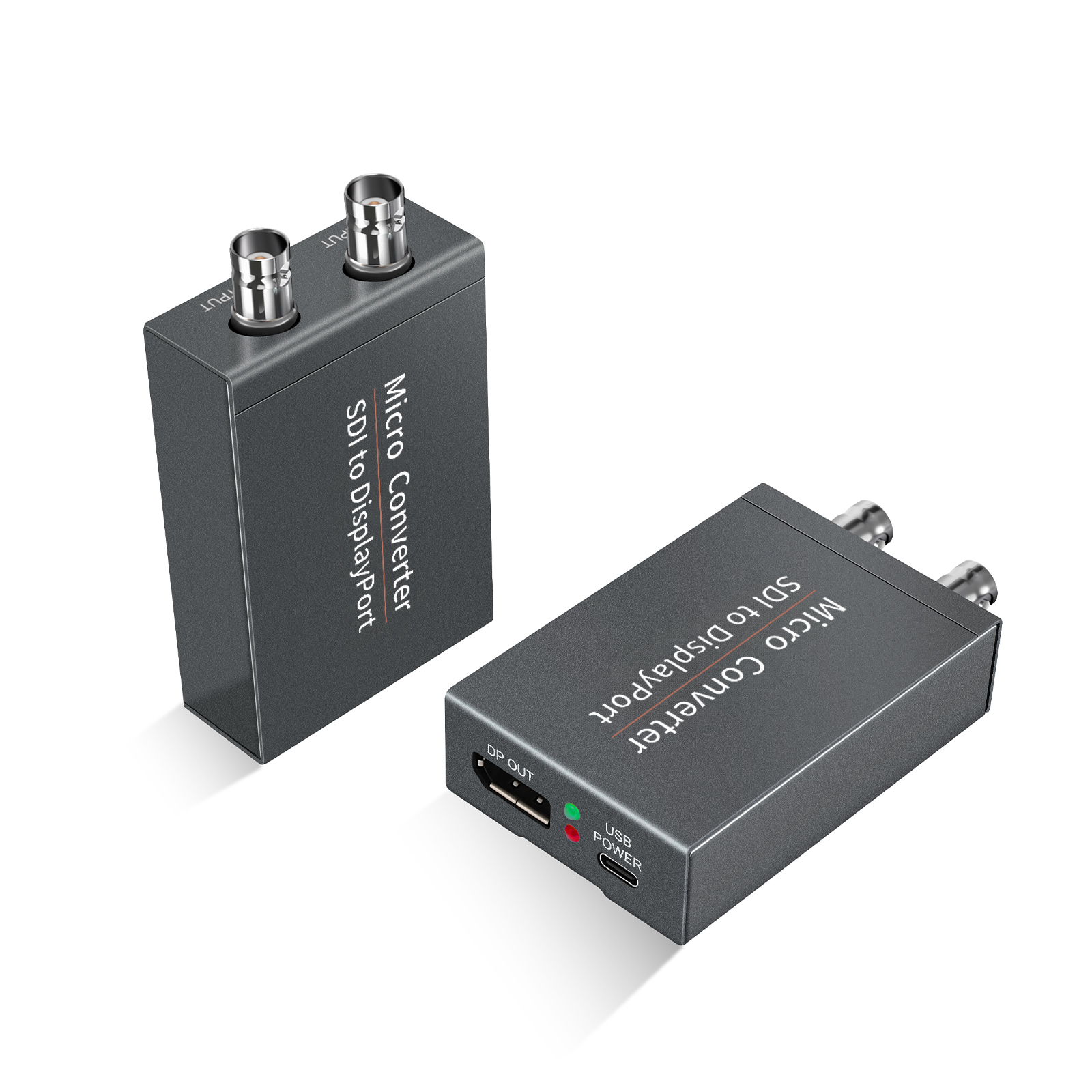

SDI to DisplayPort Converter

<p><b>Product Description</b></p>
<p>Upgrade your professional video workflow with this SDI to DisplayPort Converter featuring SDI loop-out support.</p>
<p>Designed for broadcast, studio, surveillance and live production environments, this converter allows SDI video signals to be displayed directly on DisplayPort monitors, TVs and projectors while simultaneously outputting the SDI signal to additional equipment.</p>
<p>Supporting SD-SDI, HD-SDI and 3G-SDI formats, the converter delivers stable Full HD video transmission up to 1080P 60Hz with low latency and reliable performance.</p>
<p>Perfect for:</p>
<p>Broadcast studios</p>
<p>Live streaming systems</p>
<p>Church video production</p>
<p>SDI camera monitoring</p>
<p>Security surveillance systems</p>
<p>Video matrix systems</p>
<p>Professional AV installationsThe compact metal housing improves heat dissipation and durability for continuous operation in demanding environments.</p>
<p>Simply connect your SDI source, connect your DisplayPort display and power the device via USB-C to begin operation instantly.</p>
<p><b>Technical Specifications</b></p>
<p><b>Input:</b></p>
<p>&nbsp;1× SDI Input</p>
<p>Supports SD-SDI / HD-SDI / 3G-SDI</p>
<p><b>Output:</b></p>
<p>1× DisplayPort Output</p>
<p>1× SDI Loop Out</p>
<p><b>Supported SDI Data Rates</b></p>
<p>270Mb/s</p>
<p>1.485Gb/s</p>
<p>2.97Gb/s</p>
<p><b>Supported Input Resolutions</b></p>
<p>720P@30/50/60Hz</p>
<p>1080i@50/60Hz</p>
<p>1080P@24/25/30/50/60Hz</p>
<p><b>Supported DisplayPort Output Resolutions</b></p>
<p>720P@50/60Hz</p>
<p>1080i@50/60Hz</p>
<p>1080P@24/25/30/50/60Hz</p>
<p><b>Power Supply:&nbsp;</b>USB DC 5V/1A</p>
<p><b>Impedance:&nbsp;</b>75Ω</p>
<p><b>Dimensions:</b>&nbsp;83×55×24mm</p>
<p><b>Weight:</b>176g</p>
