VHS to Digital Converter, AV/CVBS Capture Card with OTG, 1080P30 720P60 AV to USB Video Capture Card for VHS, VCR, DVR, DVD, Hi8, Mini DV, Camcorder, Cassette Tape, Gaming Consoles (USB-A)

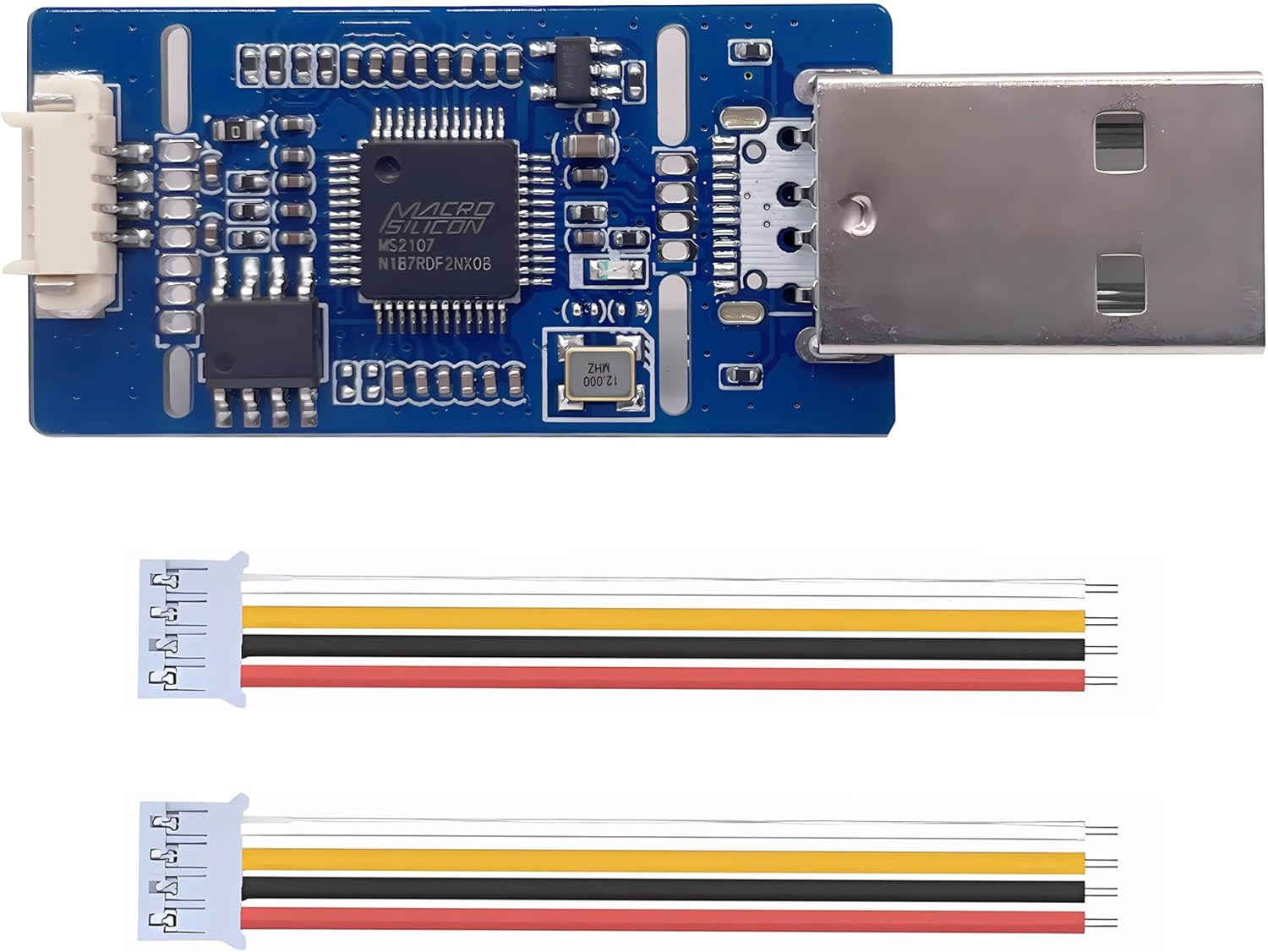

GRACETOP AV video capture card

This is a cost - effective audio and video capture module compliant with UVC/UAC. AV Video Capture supports AV/CVBS/S-VIDEO video signal and audio input, automatically adapting to PAL and NTSC formats, as well as 720P and 1080P resolutions. It can output signals to audio and video capture devices on computers and mobile phones via the USB interface. It has plug - and - play and USB drive - free features and is compatible with Windows, Linux, Android, Mac OS, etc.

Function Introduction

Signal Conversion: It converts AV/CVBS/S-VIDEO video and audio signals into USB signals, facilitating audio and video signal collection and recording on devices like computers, laptops, and mobile phones.

Versatile Applications: It is widely used in security monitoring, medical equipment video capture, enterprise video conferencing, education, phishing detection, and project integration.

Software Compatibility: Compatible with computer acquisition software such as OBS, POTPLAYER, AMCAP, VLC, and USB camera mobile acquisition software.

Instructions for Use

Connect AV/CVBS/S-VIDEO Signal Source: Connect the AV/CVBS/S-VIDEO signal source to the 1.25 * 4 pin port of the module. The left - to - right interfaces are 5V output GND, video input, and audio input.

Connect Output Devices: Connect computers, phones, tablets, etc., through the USB or TYPE - C ports of the module.

Open Collection Software: Open the corresponding collection software on the computer or mobile phone to display the screen.

Product Parameters

Input Interface: 1.25mm * 4pin terminal block

Input Signal: AV, CVBS, S-VIDEO, 720P and 1080P signals (compatible with PAL and NTSC formats)

Output Interface: USB TYPE - C

Output Format: MJPEG、YUV422

Video Output Resolution and Frame Rate:

MJPEG format: 1920x1080 (30 frames), 1280x720 (60 frames), 800x600, 720x576, 720x480, 640x480, 480x320, 320x240

YUY2 format: up to 1920x1080 (5 frames), 1280x720 (10 frames), 720x576 (25 frames), 720x480 (30 frames), 640x480, 480x320, 320x240

Audio Output: 48KHZ stereo

Audio and Video Protocol: Standard UVC/UAC

Driver: No installation required, plug and play

Operating System Support: Microsoft Windows/Linux/Android/MAC OS

Common Collection Software: OBS/Potplayer（Windows）

Product Power Consumption: <3Wat

Product Size: 1.9 * 3.8cm / 0.75x1.52in

Product Weight: 10g
