Product Description

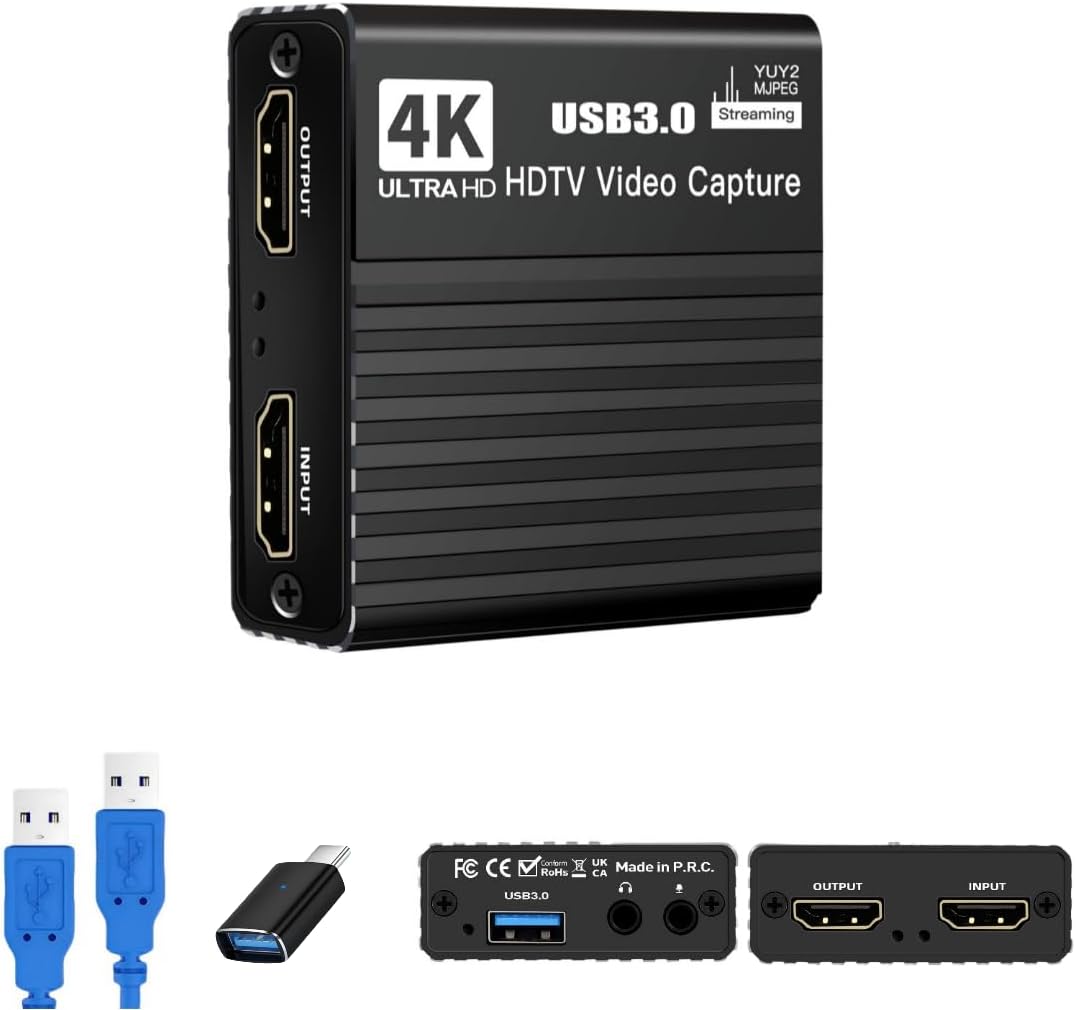

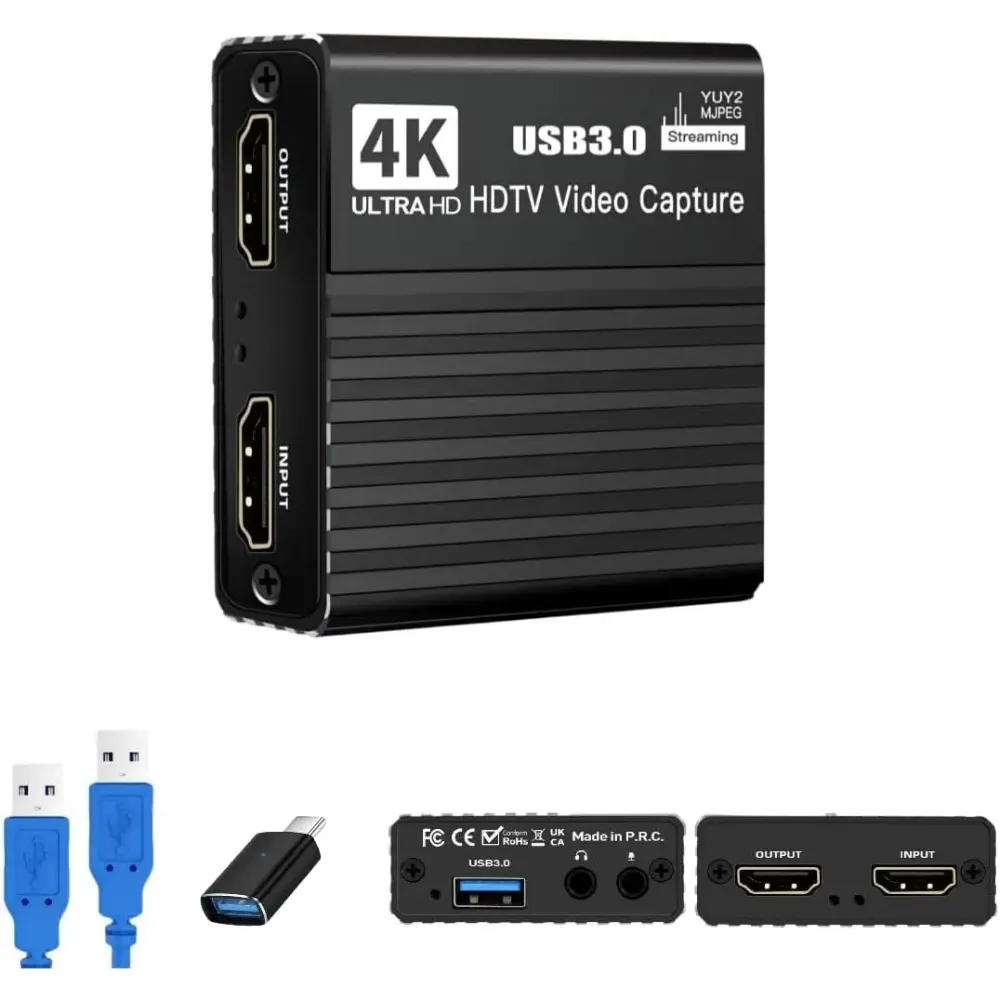

This USB 3.0 HDMI video capture card is designed for high-definition video acquisition, live streaming, recording, broadcasting, and professional AV applications.
It supports HDMI 2.0 signal input up to 4K@60Hz and captures video through USB output with resolutions up to 1080P@60FPS for smooth and stable video performance.
The device supports multiple HDMI color formats including 4:4:4 RGB, 4:4:4 YUV, and 4:2:2 YUV, providing clear and accurate image transmission for professional streaming environments.
Compatible with both USB 2.0 and USB 3.0 interfaces, the capture card offers plug-and-play operation without requiring additional drivers, making setup fast and convenient.
Widely compatible with streaming and recording software such as OBS and VLC, this capture device is suitable for game streaming, live broadcasting, video conferencing, online education, surveillance systems, and multimedia production.
Technical Specifications
HDMI Input Standard
HDMI 2.0
Supported HDMI Input Resolutions
4K@60Hz
4K@30Hz
1080P@60Hz
1080I
720P
576P
480P
Supported HDMI Color Formats
4:4:4 RGB
4:4:4 YUV
4:2:2 YUV
Does not support 4:2:0 input mode
USB Capture Output Resolutions
1080P@60Hz
1080P@30Hz
1280×720P
960×540P
576P@50Hz
480P@60Hz
USB Interface
USB 2.0 / USB 3.0 Compatible
USB Transmission Speed
Up to 480Mbps
Supported Software
OBS Studio
VLC
Other mainstream capture software
Operating Mode
Plug & Play
Driver-free installation
Ideal Applications
Game Streaming
Live Broadcast
OBS Recording
Video Conferencing
Online Teaching
CCTV Monitoring
Multimedia Production
Conference Systems
Package Includes
1 × USB 3.0 HDMI Video Capture Card
1 × User Manual
