HDMI video capture card
Do you want the live video to be clearer?
Do you want a more streamlined game recording?
Do you want more encouragement?
Do you want to watch more of your YouTube videos?

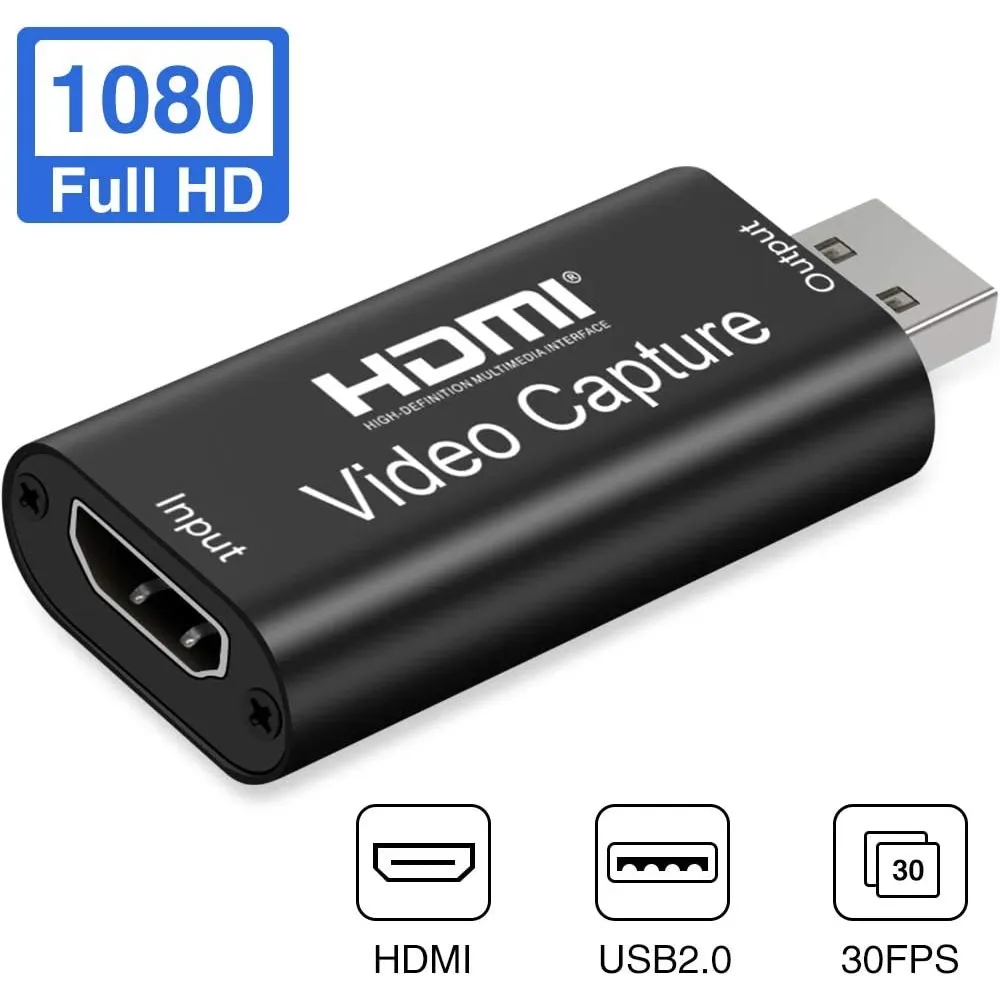

GRACETOP HDMI to USB Capture Card
HDMI to USB 2.0 Audio Video Capture Cards 1080p 30fps Record via DSLR Camcorder Action Cam for High Definition Acquisition, Broadcast Live video capture card
|
|
|
|
|---|---|---|
|
Audio Video Capture Cards Support input max resolution 1920X1080@30Hz, output max resolution 1920×1080@30Hz Easily connect your DSLR, camcorder, or action Cam to your PC or Mac Real-Time Feedback, Shoot and produce within your favorite tools Record videos directly to the hard disk without time delay Suitable for high definition acquisition, teaching recording, medical imaging, etc. |
Plug and Play HDMI Capture Cards No driver or external power supply, The game capture card is suitable for low-latency game, can meet the needs of the meeting. The small size capture card directly leads the USB cable to avoid unnecessary connection failure. No Driver Required: This capture card does not need to install a driver, so you can use the built-in functions of the current software to get a seamless experience. Because the device is compatible with most third-party software, it can be plug-and-play for Windows, for Ma OS X, and for Linux. |
HDMI Game Capture: Based on high-speed USB technology, you can capture a high-definition HDMI video signal of a signal channel. The game capture card is suitable for devices with HDMI output, such as devices for PS4, for Xbox one, for Wii U and for Switch. |
GRACETOP 1080P HD Video Capture Card
System Requirements and Technical Specifications
Host Interface: USB2.0, *100-450MB/s.
Input Interface: HDMI interface
HDMI Input Formats
480i, 480p,576i, 576p, 720p@30, 1080i@30, 1080p@24/25/30fps (Max)
Output Formats
640x480/720x480/720x576/768x576/800x600/1024x768/1280x720/1280x800/1280x960/1280x1024/1368x768/1440x900/1600x1200/1680x1050/1920x1080@30fps (Max)
Frame Rate: 25/29.97/30 fps
HDMI Video Capture Card
- HDMI INPUT1080P 60fps (MAX)
- USB OUTPUT 1080P 30fps (MAX)
- Conform to USB Video UVC standard
- Conform to USB Audio UAC standard
- Plug and play
IN BOX:
1pcs HMDI to USB capture card,
1pcs Advanced storage box.
Mini HDMI Capture
Size: 2.8*1.1*0.3in
Weight: 2oz/50g
Power consumption: <= 2.5W
Working Temperature: 0-50 deg C
Storage Temperature: -20~70 deg C
Support of OS:Windows 7; Windows Server 2008, R2 Linux (Kernel version 2.6.38 and above). No Driver, Windows, Linux, Mac OSX
Software Compatibility:Windows Media Encoder (Windows), Adobe Flash Media Live Encoder (Windows), Real Producer Plus (Windows), VLC (Windows, Linux),Wirecast (Windows), Potplayer(Windows)and etc.
Conform to USB Video and UVC standard
Conform to USB Audio UAC standard
Max working current: 0.4A/5V DC
Without external power supply, compact and portable.
Support AWG26 HDMI standard cable: input up to 15 meters
