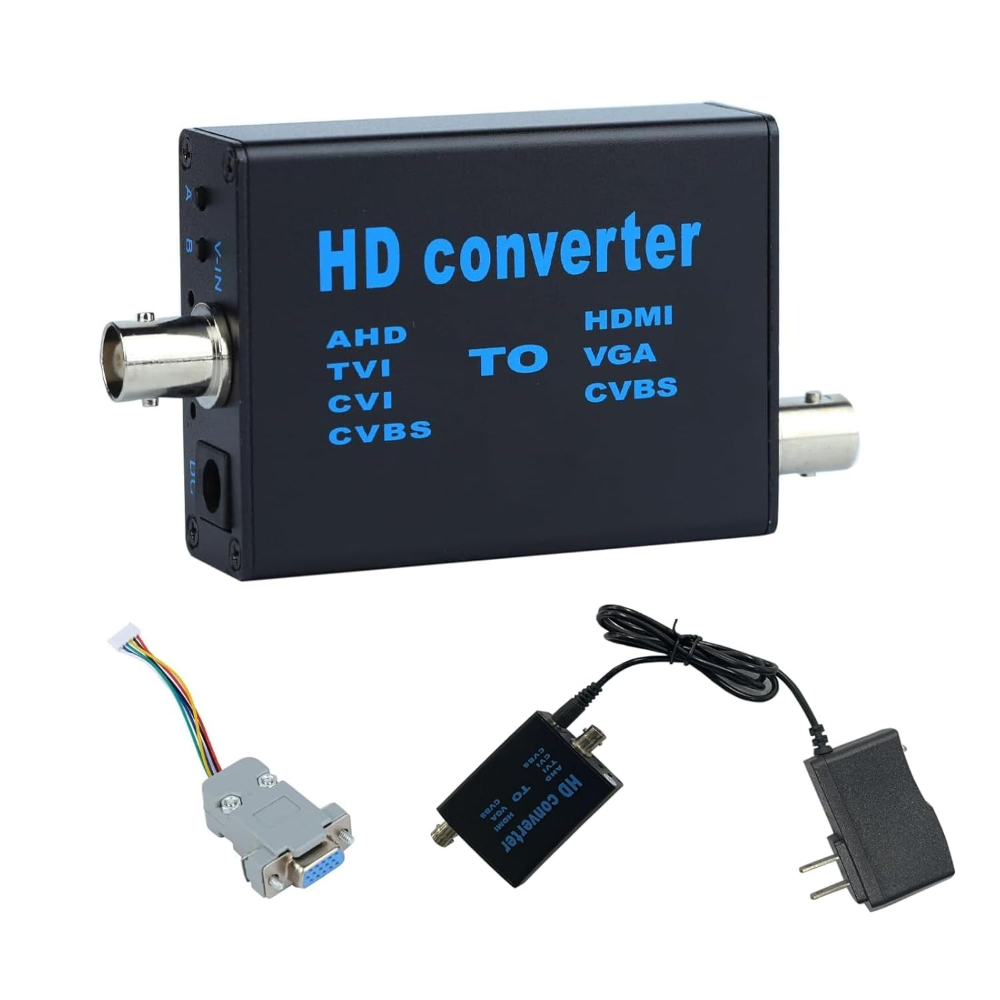

GRACETOP BNC Cable to HDMI Video Signal Convertor,Audio Video Capture Converte,4 in 1 HD Convertor AHD/TVI/CVI/CVBS Signal to HDMI/VGA/CVBS 1080p for Camera/DVR/CCTV Security System

AHD/TVI/CVI/CVBS video signal to HDMI/VGA/CVBS convertor is a 4 in 1 high definition convertor, it convert AHD/TVI/CVI/CVBS signal, then you get the HDMI . this item recognize input automatically. compatible with 1080P,960P,720P,480P input. output support 1080P and 720P. You can shift by button on convertor. MPS wide power 5V-20V design helps widely used different working conditions.

Port/Function: A: Output signal shift / B: Signal output resolution or TV mode shift / V-IN: Signal input (AHD TVI CVI CVBS) / DC: Power input 5V-20V / Indicator (From left to right) : VGA signal, CVBS signal, HDMI signal, Power (Red)

Port/Function : V-OUT: CVBS signal output (NCTS or PAL optional) / VGA: VGA signal output / HDMI: HDMI signal output[720P or 1080P optional]

How to use:

1. Connect with original 12V power adapter to DC port, after power on, the RED light on;

2. V-IN connect with video signal input, the other side connect with the device which to receive converted video signal;

3. If you connect V-OUT/VGA/HD at the same time, press button A to shift different signal to display. The default output signal type is HD.

4. When using HD output, press button B to shift Video resolution between 1080P or 720P.

5. When using CVBS output, press Button B to shift PAL/NTSC mode.
