Product Description

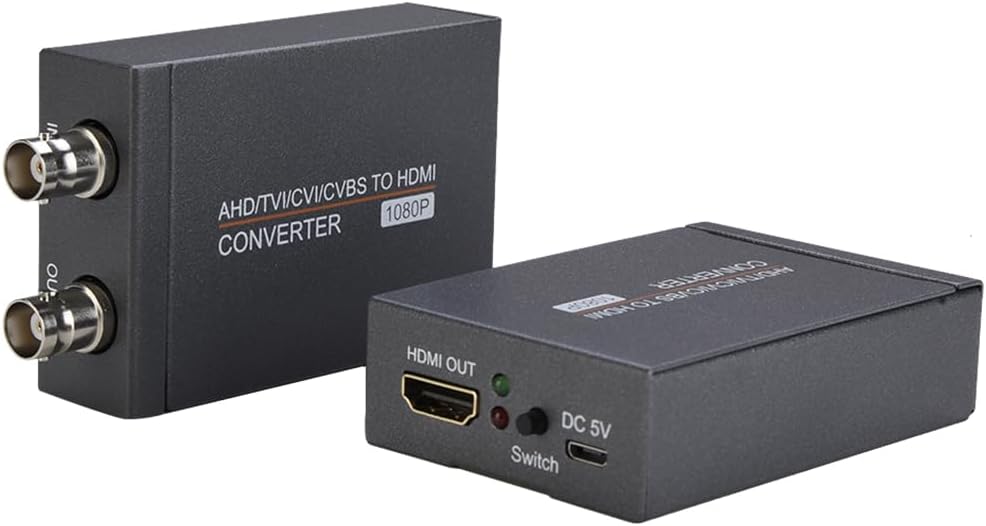

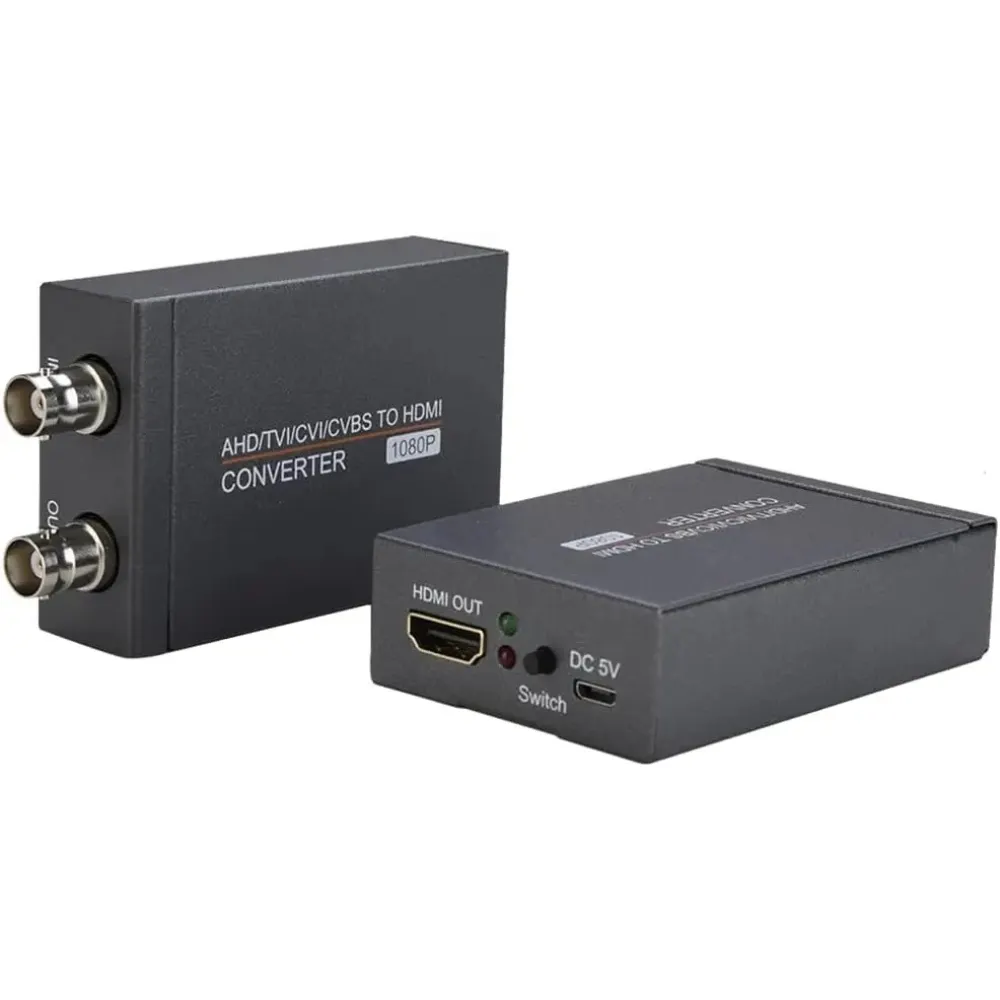

Upgrade your existing analog security camera system with this professional AHD/TVI/CVI/CVBS to HDMI Converter. Designed for modern surveillance applications, this high-performance video converter allows analog HD camera signals to be displayed directly on HDMI monitors, TVs, projectors, video capture devices, and other HDMI-compatible displays.
Supporting multiple video formats including TVI, CVI, AHD, and traditional CVBS signals, this converter provides excellent compatibility with most CCTV security camera systems currently on the market. It is an ideal solution for security monitoring upgrades, camera testing, live monitoring, DVR bypass applications, and integrating legacy surveillance systems with modern HDMI display equipment.
The converter supports high-definition video resolutions up to 8MP input, delivering clear, stable, and low-latency HDMI output for professional surveillance environments. Whether used in retail stores, offices, warehouses, residential security systems, elevator monitoring, parking lots, or traffic monitoring systems, this converter ensures reliable video transmission and smooth display performance.
Equipped with selectable HDMI output resolutions of 720P@60Hz and 1080P@60Hz, users can easily switch output modes according to the display device requirements. The built-in intelligent memory function automatically saves the last selected output resolution even after power is disconnected, improving convenience during long-term use.
The integrated on-screen display (OSD) system automatically detects and displays the current input signal format, allowing users to quickly identify TVI, CVI, AHD, or CVBS input sources. If no valid signal is detected or the input format is unsupported, the display will show a rainbow screen indication for troubleshooting purposes.
This converter features broad resolution compatibility across multiple surveillance standards:
TVI signal support includes:
720P at 25/30/50/60FPS,
1080P at 25/30FPS,
3MP at 18/25/30FPS,
4MP at 15FPS,
5MP at 12.5/20FPS,
and 8MP formats.
AHD signal support includes:
720P at 25/30FPS,
1080P at 25/30FPS,
3MP at 18/25/30FPS,
4MP at 15/25/30FPS,
5MP at 12.5/20FPS,
and 8MP formats.
CVI signal support includes:
720P at 25/30/50/60FPS,
1080P at 25/30FPS,
4MP at 25/30FPS,
and 8MP formats.
The device uses a standard BNC interface for video input and HDMI interface for video output, making installation simple and convenient. No drivers, software, or complicated setup procedures are required. Simply connect the analog camera source via BNC cable, connect the HDMI output to a display device, power the converter through the included DC 5V USB power supply, and the system is ready for operation.
For enhanced signal stability and wider compatibility, the converter also includes a 75Ω / HI-Z impedance switch. When the input port is connected directly to a security camera without additional DVR or monitor connections, the switch should be set to 75Ω. When the output is looped to a DVR or additional monitor device, the switch should be set to HI-Z mode to optimize signal transmission and reduce interference.
Built with durability and continuous operation in mind, the converter features stable internal circuitry and efficient heat dissipation for long-term surveillance applications. Its compact design allows easy installation in control rooms, DVR cabinets, security stations, retail environments, and industrial monitoring systems.
Key Features:
Supports TVI, CVI, AHD, and CVBS signal input
Converts analog HD video signals to HDMI output
Supports resolutions up to 8MP
HDMI output selectable between 720P@60Hz and 1080P@60Hz
Plug-and-play operation with no software required
Automatic input signal format detection
Built-in OSD status display
75Ω / HI-Z impedance switching
Stable video transmission with low latency
Compatible with security cameras, DVR systems, HDMI monitors, TVs, projectors, and video capture devices
Compact and durable design for professional surveillance applications
Technical Specifications:
Input Signal Formats: TVI / CVI / AHD / CVBS
Video Input Interface: BNC
Video Output Interface: HDMI
HDMI Output Resolution: 720P@60Hz / 1080P@60Hz
Power Supply: DC 5V/1A USB
Impedance: 75Ω / HI-Z selectable
Operating Mode: Plug and Play
Package Includes:
1 × AHD/TVI/CVI/CVBS to HDMI Converter
1 × USB Power Cable
1 × User Manual
