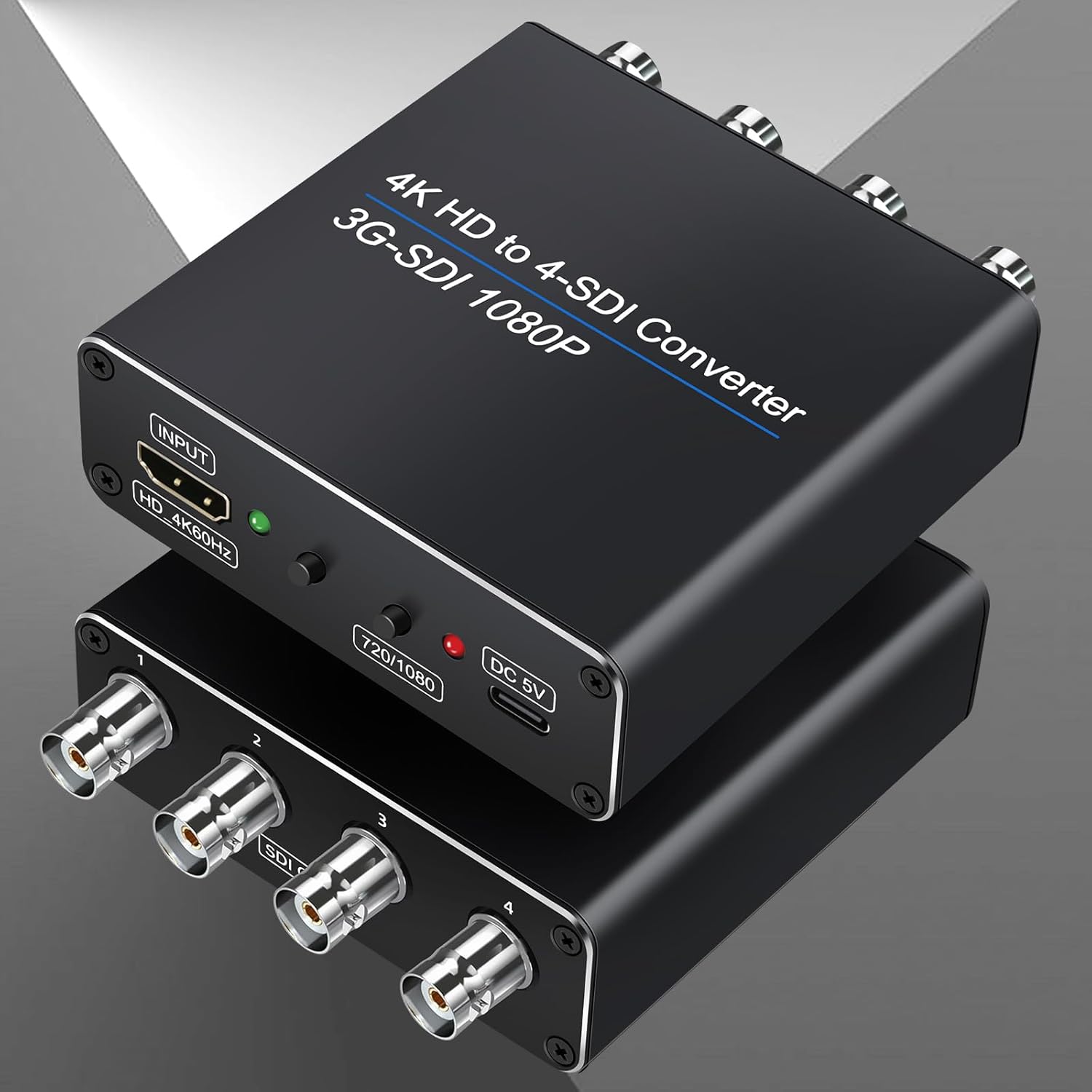

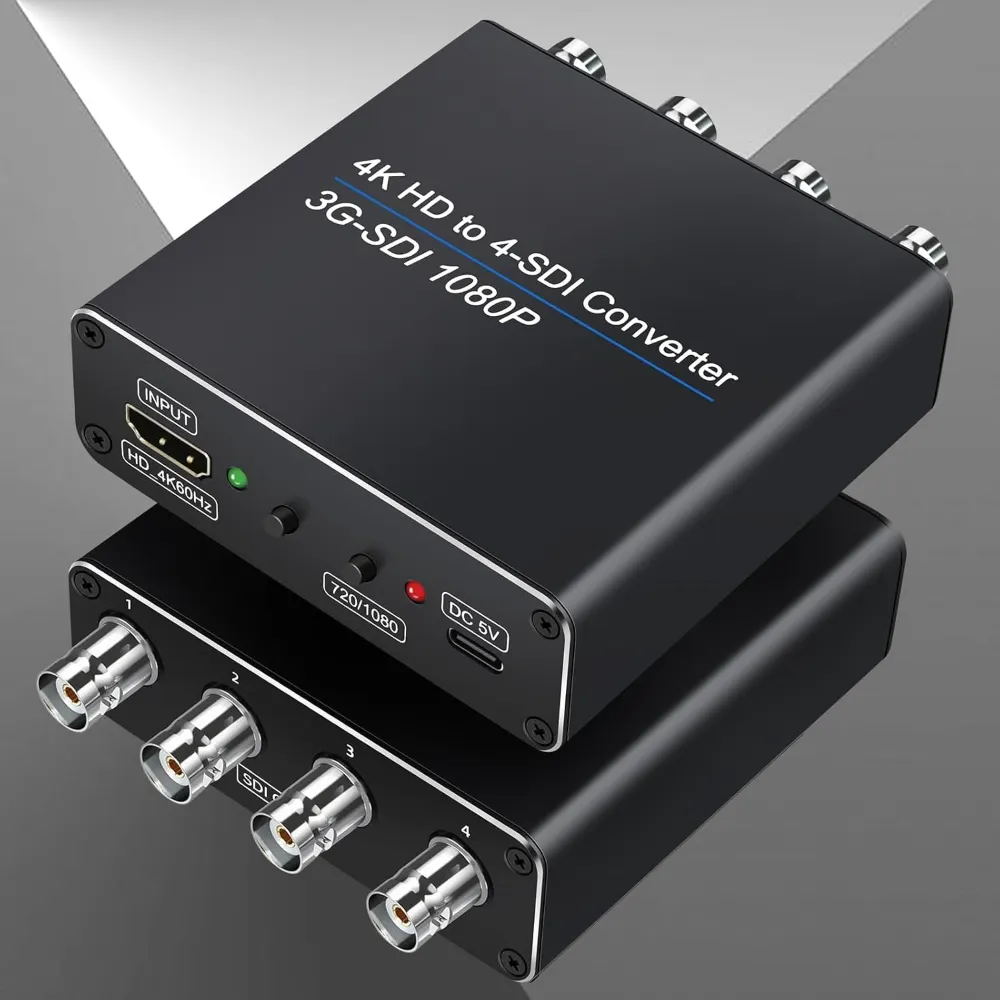

Product Description
This 4K HDMI to 4x SDI converter is a professional-grade video signal distribution solution designed for broadcast systems, live production, security monitoring, and AV engineering applications.
It converts a single HDMI input source into four synchronized SDI outputs, allowing simultaneous display or transmission to multiple SDI devices.
The device supports HD-SDI and 3G-SDI standards, ensuring compatibility with a wide range of professional video equipment. With automatic signal identification, it intelligently adapts to different SDI formats for stable output.
It supports HDMI input resolutions up to 4K@60Hz, delivering ultra-clear video quality while maintaining signal integrity during conversion.
Advanced internal signal processing includes cable equalization, clock recovery, and signal amplification, ensuring stable long-distance transmission with minimal loss and interference.
Designed for professional environments, the converter includes industrial-grade ESD protection and operates reliably across a wide temperature range.
Technical Specifications
Input Interface: 1 x HDMI Female Port
Output Interface: 4 x BNC Female SDI Ports
Supported Formats: HD-SDI (1.485Gb/s), 3G-SDI (2.97Gb/s)
Bandwidth: Up to 3Gbps
HDMI Resolution Support: Up to 4K@60Hz
Power Supply: DC 5V / 1A (Type-C Power Cable Included)
ESD Protection:Air Discharge: ±8kV
Contact Discharge: ±4kV
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
Humidity: 20% ~ 90% RH (non-condensing)
Package Includes
1 × 4K HDMI to 4x SDI Converter
1 × Type-C Power Cable
1 × User Manual
