Product Description

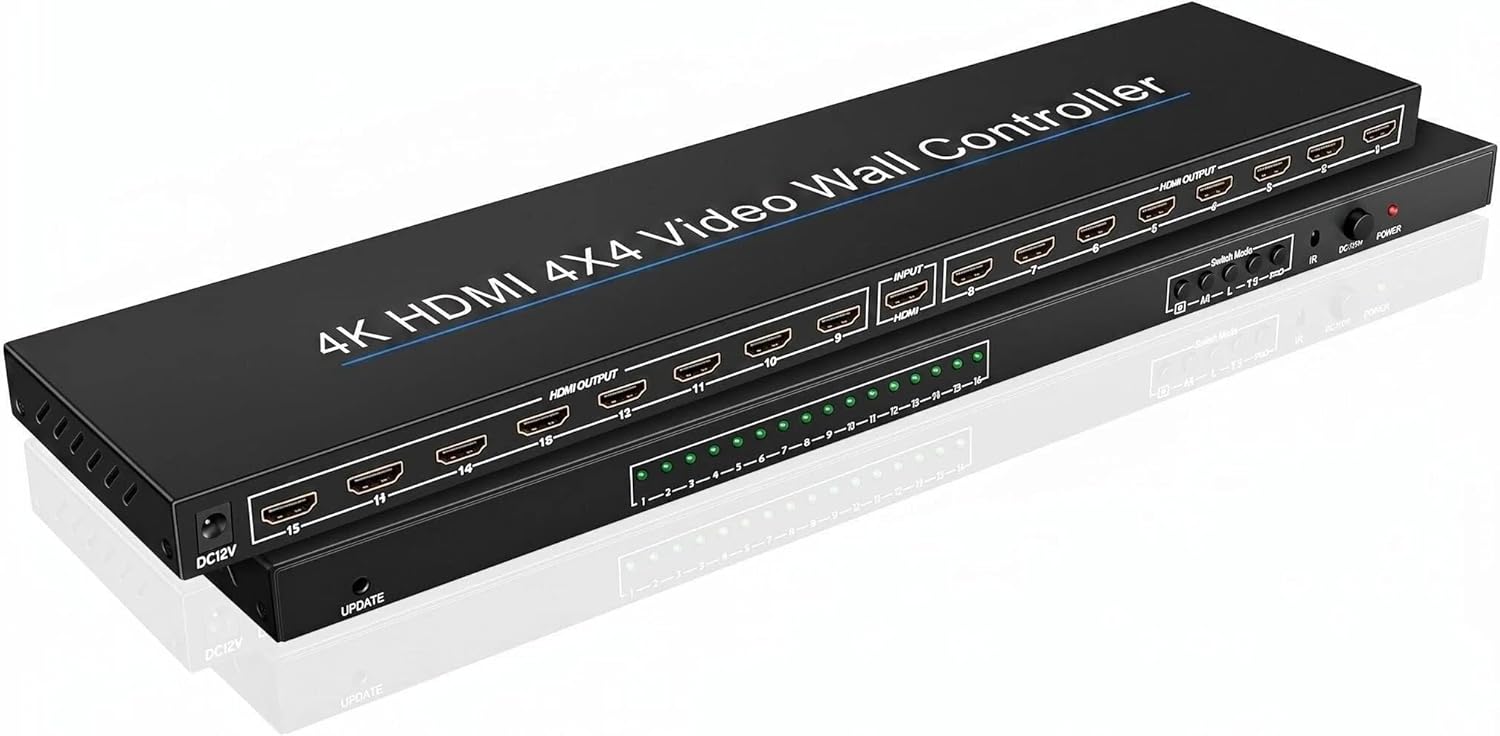

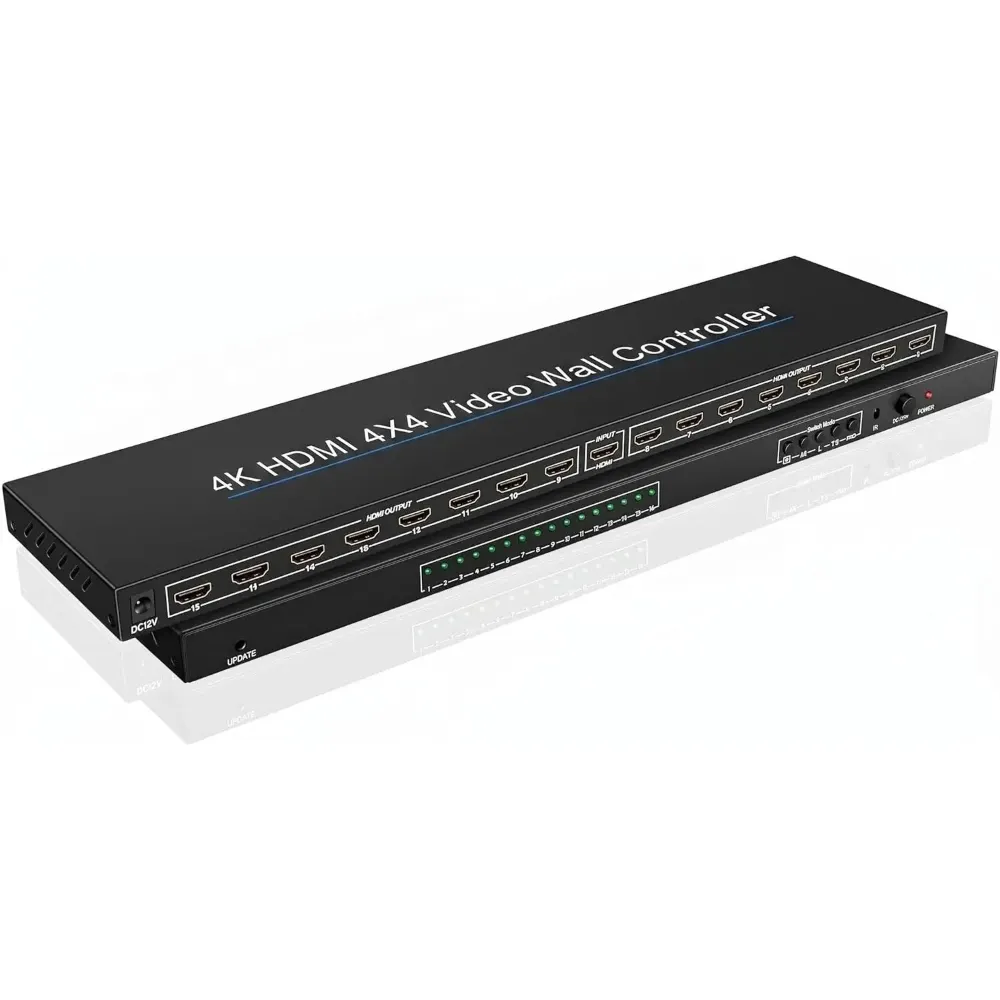

Professional 4K HDMI 4x4 Video Wall Controller
This 4K HDMI Video Wall Controller is designed for professional multi-screen display applications. It supports 1 HDMI input and 16 HDMI outputs, allowing one HDMI source to be split and displayed across up to 16 screens to create a stunning large-format video wall system.
Perfect for commercial display systems, security monitoring, digital signage, exhibitions, conference rooms, retail stores, entertainment venues, churches, restaurants, bars, control centers, and more.
━━━━━━━━━━━━━━━━━━
Key Features
1 HDMI Input / 16 HDMI Outputs
Supports up to 4K Ultra HD 3840×2160@30Hz input and output
Multiple video wall splicing modes supported
Plug and Play operation
IR remote control included
Supports screen mirror function
Supports screen position adjustment
Supports audio switching
Supports cascading connection
Stable and synchronized image output
━━━━━━━━━━━━━━━━━━
Supported Video Wall Modes
1×1 1×2 1×3 1×4
2×1 2×2 2×3 2×4 2×5 2×6 2×7
3×1 3×2 3×3 3×4 3×5
4×1 4×2 4×3 4×4
5×2 5×3
6×2
7×2
Flexible splicing layouts allow easy customization for different display environments and installation requirements.
━━━━━━━━━━━━━━━━━━
Supported Output Resolutions
1280×720@60Hz
1600×900@60Hz
1920×1080@60Hz
1920×1440@60Hz
2560×1600@60Hz
3840×2160@30Hz
Delivers clear, vivid, and high-definition image performance for professional display applications.
━━━━━━━━━━━━━━━━━━
Interface Description
DC 12V — Power input
HDMI INPUT — HDMI signal source input
HDMI OUTPUT 1–16 — HDMI display outputs
UPDATE — Reserved firmware upgrade port
IR — Infrared receiver
POWER — Power indicator light
ON/OFF — Power switch
Function Buttons:
Mode switching
Mirror function
Screen location adjustment
Output resolution switching
Audio switching
━━━━━━━━━━━━━━━━━━
Mirror Function
Each display can be independently flipped using the included remote control, making installation and display alignment more flexible for complex video wall projects.
━━━━━━━━━━━━━━━━━━
Easy Installation
Simply connect the HDMI source device and displays, power on the controller, and select the desired splicing mode using the remote control.
No complicated software setup required.
Recommended HDMI cable:
Use high-quality 19+1 pin full-wire HDMI cables for optimal signal stability and performance.
━━━━━━━━━━━━━━━━━━
Applications
Security Monitoring Systems
LCD Video Walls
Digital Signage
Retail Advertising Displays
Conference Rooms
Control Centers
Shopping Malls
Exhibition Displays
Churches
Bars & Restaurants
Entertainment Venues
━━━━━━━━━━━━━━━━━━
Package Includes
1 × 4K HDMI 4x4 Video Wall Controller
1 × Power Adapter
1 × IR Remote Control
1 × User Manual
